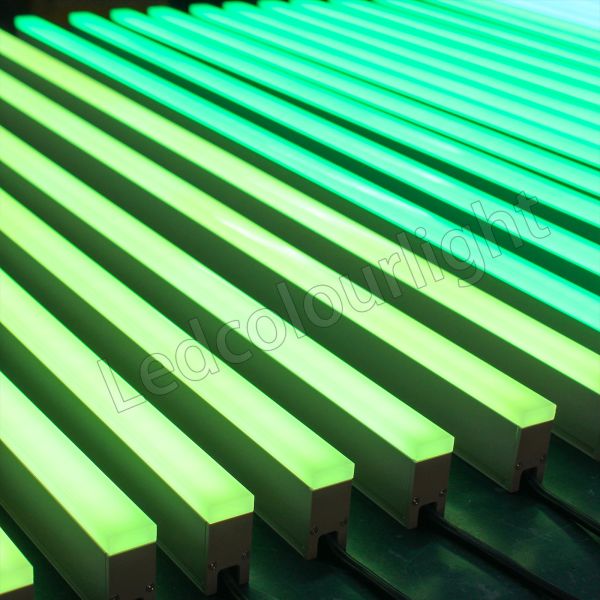

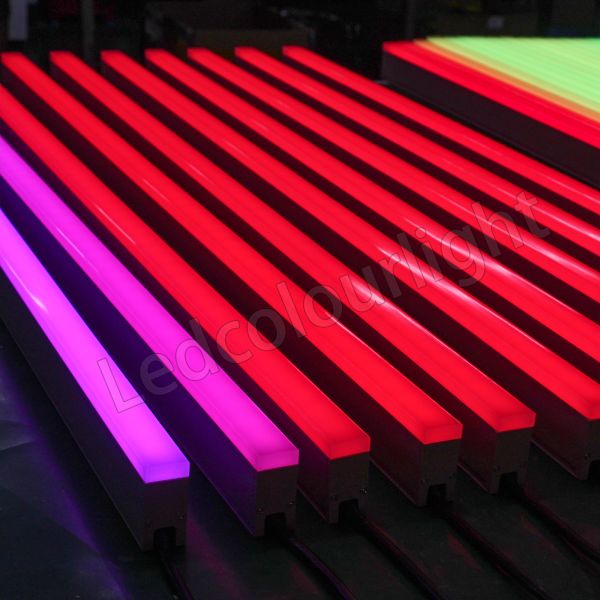

Production Specification
• Length Options: Available in 0.5m and 1m lengths.
• Face Cover: Thick colloid acrylic cover ensures soft and uniform light emission.
• Housing: High-quality aluminum base provides excellent heat dissipation and structural durability.

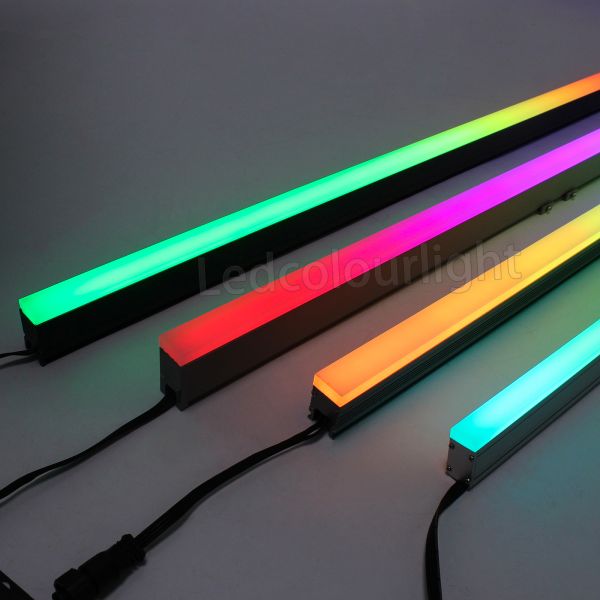

• Cable Outlet: Wires exit from the bottom of the profile for a clean, concealed connection.
• Seamless Splicing: Design for seamless joining - multiple units can be connected without visible gaps.
• LED & Pixel Configurations (1M length)
- Option 1: 60 LEDs, 10 pixels, DC24V
- Option 2: 60 LEDs, 20 pixels, DC12V
• Waterproof Rating: IP65 rated, making it suitable for reliable outdoor use.
Technical Specifications: 4 Sizes for you to choose from.
|
Model
|
LCL-DBBT2040-D6010A
|
LCL-DBBT2342-D6010A
|
LCL-DBBT2540-D6010A
|
LCL-DBBT2550-D6010A
|
|
Size
|
1000x20x40mm
|
1000x23x42mm
|
1000x25x40mm
|
1000x25x50mm
|
|
LED Quantity
|
60 pcs SMD5050 LEDs
|
|
Pixels
|
10 Pixels
|
|
Power
|
14.4W
|
|
Voltage
|
DC24V
|
|
Color
|
RGB/RGBW
|
|
Luminous Angle
|
120 Degree
|
|
Control Mode
|
DMX/SPI
|
|
LED Lifetime
|
Over 50000 hours
|
|
IP Rating
|
IP65
|
|
Housing Material
|
Acrylic mask + stretched Aluminum
|
|
Cable
|
15cm 4-pin rubber cable
|
- Bottom Outlet - both sides with cable outlet, seamless installation. With Brackets for installation.
- Aluminum profile: color can be sandblasted gray, silver, or black.
- RGB full color - RGBW color is available.
- Connection Diagram:
Application
- Outdoor architectural accent lighting
- Bridge and viaduct contour lighting
- Landscape pathway and step lighting
- Public plaza and square decorative lighting
- Retail storefront and window displays
- Park and recreational area lighting
- Event and temporary structure lighting
Certificaiton
FAQ
1. Q: Are you a factory or a trading company?
A: We are a factory as a manufacturer.
2. Q: What does your company produce mainly?
A: Ledcolourlight mainly specializes in DMX Lighting products and also provides a full DMX lighting solution for projects.
3. Q: How can I get some samples? Delivery time for samples?
A: If samples are in stock, they can be sent out right away. If no samples are in stock, take 1-3 business days for production.
4. Q: MOQ?
A: 2 pieces per model at least.
5. Q: OEM and ODM available?
A: Yes.
6. Q: Delivery time for a big order?
A: For small orders, 3-6 business days. For a big order, 10-12 business days.
7. Q: Payment Term?
A: PayPal (Less than 1000USD), T/T, Credit Card, Western Union, L/C.
8. Q: Warranty?
A. All products we sell are of good quality and have been tested before they are shipped out. We offer a 2-year Warranty.
9. Q: How about I have never bought any product from China?
A: We will guide you step by step, any potential costs will be listed, and we will provide all the information if needed.
